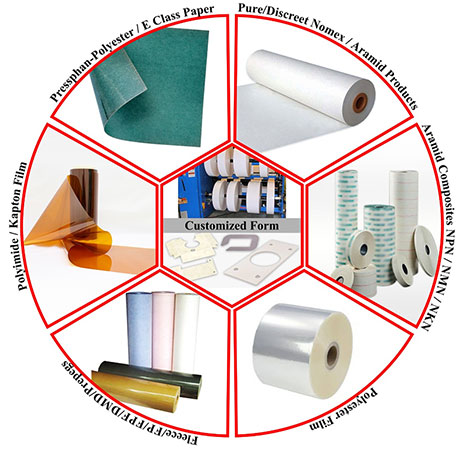

Flexible / Composite Papers & Laminates
The flexible laminate and paper products offered by Lamtex are of superior quality manufactured by laminating insulation plastic films with non-wovens or specialized paper materials.

The superior quality of these products are a direct result of the adhesive formulation and the dedicated work and development of our experienced team members.

Multi-layer insulation laminates include two or three layers. The layer in the middle consists of polyester or polyimide. Combination of materials enables different characteristics, optimized properties and functionality of laminates, such as:

» Ability to work under different operating temperatures
» An optimized tensile strength and stiffness of material
» An increased resistance to breakdown voltage
» An improved capacity for impregnation


Description

Properties

End Users

FP / FPF / DMD: 2plex or 3plex laminates with Non-Woven and Polyester Film

Laminated product made with the coupling of polyester non-woven felt with polyester film.

2plex or 3plex laminate.

The polyester fleece / felt is used to improve the thermal aging performance of the polyester film.

Overall performance of the laminates is achieved by saturating the polyester felt with synthetic resins.

3plex system is rated 180°C and is fully saturated with a high thermal resistant adhesive.

Polyester film thickness increases product rigidity and dielectric performance.

Suitable for thermal classes 130°C and 155°C for rotating machines and transformer applications

» slot insulations
» phase insulations
» interlayer insulations

NP / NM / NPN / NMN – 2plex or 3plex laminates with Nomex® / Aramid and Polyester Film

Laminated product made with the coupling of Nomex® paper with polyester film.

2plex or triplex laminates.

Nomex® is used to improve the thermal performance up to 220°C when requested.

Overall performance of the laminates is the thermal resistance up to 180°C.

Polyester film and Nomex® paper offer both strong mechanical resistance and excellent electrical properties.

Suitable for thermal classes 155°C and 180°C for rotating machines and transformer applications

» slot insulations
» phase insulations
» interlayer insulations

NK / NKN / NHN  – 2plex or 3plex laminates with Nomex® Paper & Polyimide / Kapton® Film

Laminated product made by coupling Nomex®) paper with polyimide or Kapton® film.

2plex or 3plex laminates.

Both component assemblies are used for extreme high temperature insulation (>200 deg C) when requested.

Overall performance of the laminates is the thermal resistance up to 220°C.

Suitable for thermal classes 200°C and 220°C for rotating machines and transformer applications.

» slot insulations
» phase insulations
» interlayer insulations

Nomex® and Kapton® are registered trademarks of DuPont®
